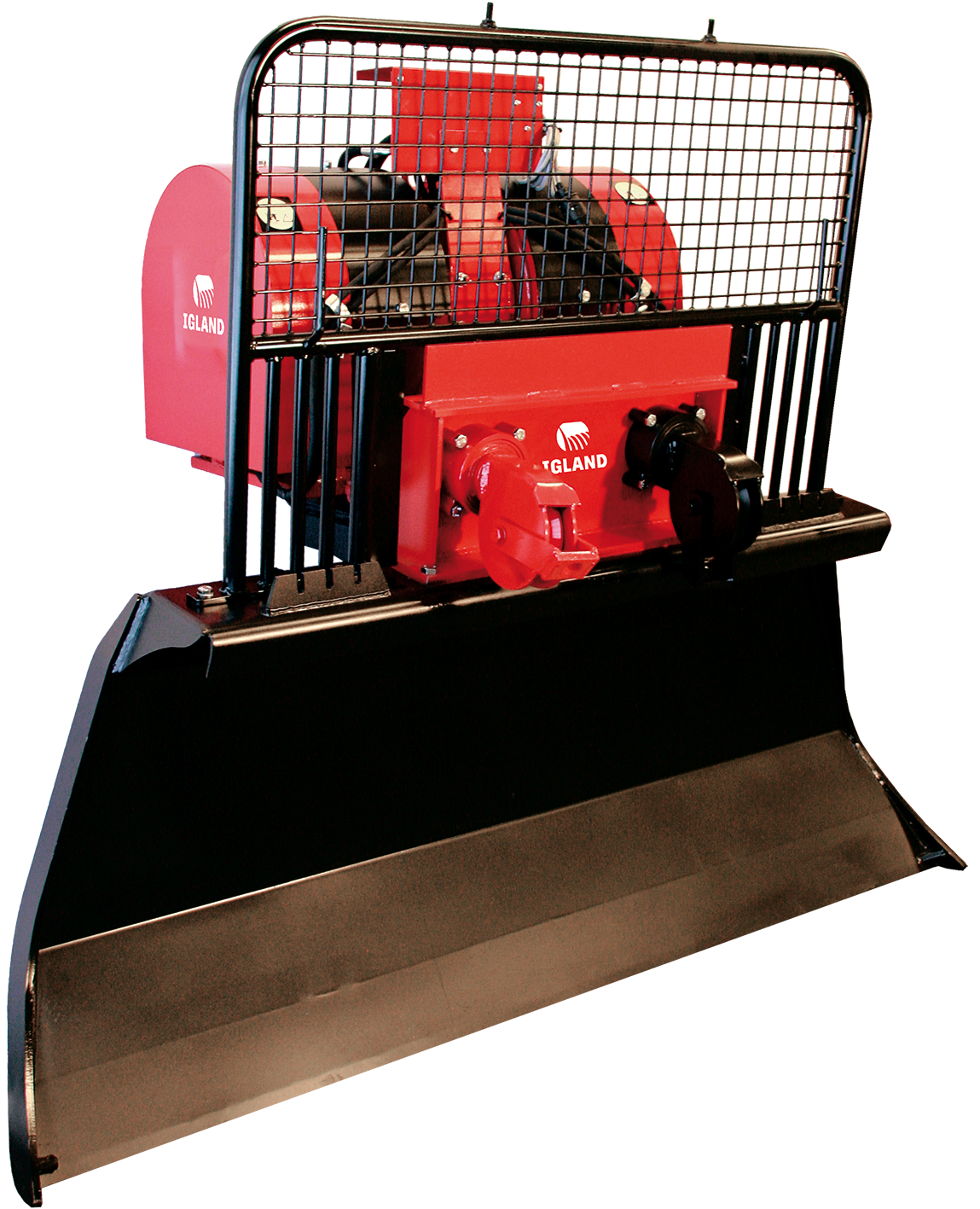

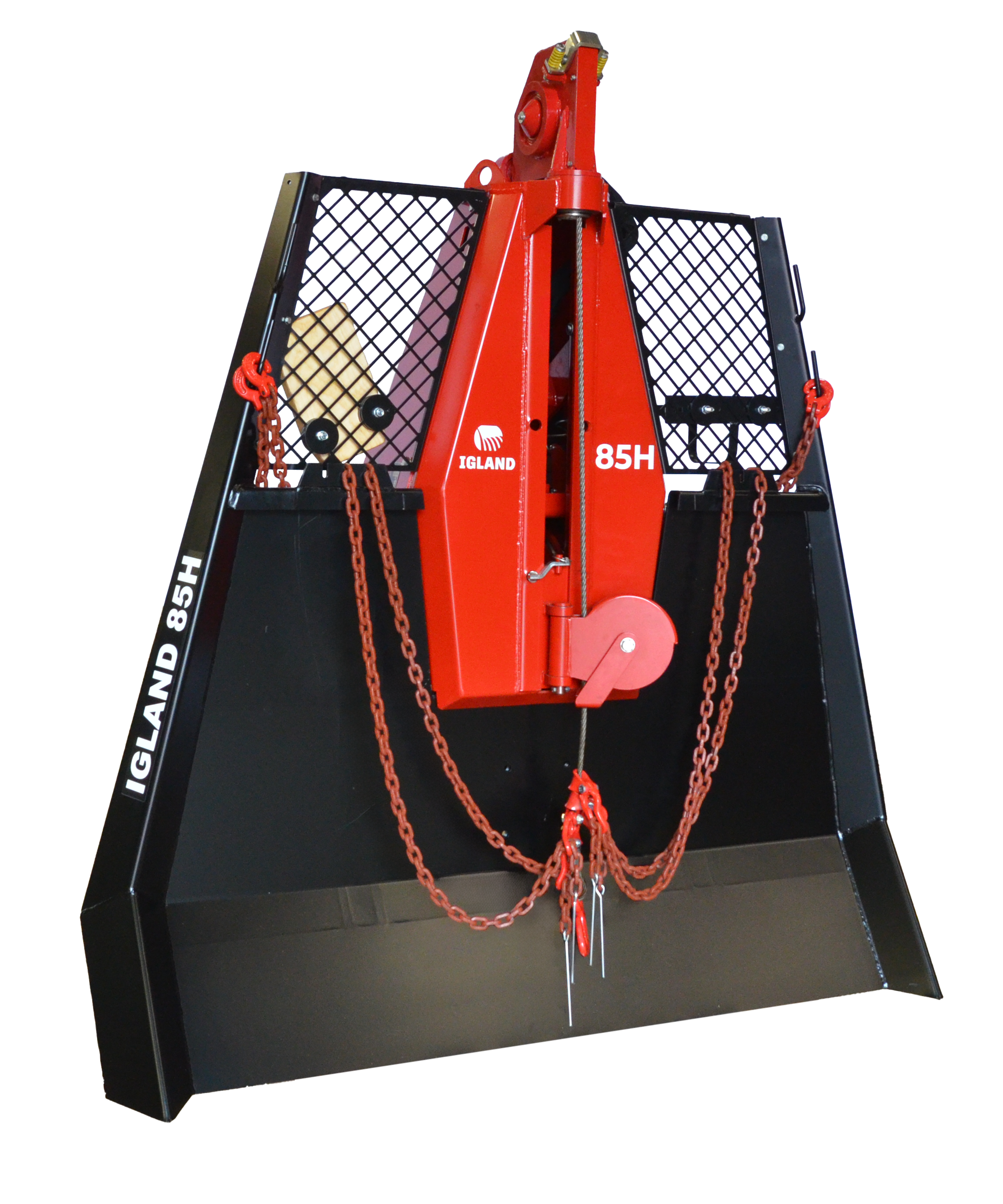

IGLAND 85H
IG300191-2
kr 271 080,00 per pcs
Inkl. mva.

IGLAND most powerful one-drum forest winch. This is a very solid and robust winch designed for large tasks. The winch is equipped with a large logging plate providing excellent ground support and is ideal for timber stacking at the loading site. Very good drum capacity provides good choices of wire. The winch is equipped with a double clutch for greater reliability, less wear and longer lifespan. The construction of the winch provides excellent haul-in characteristics. 85H has a SPOOLMATIC coil unit which distributes the wire rope evenly across the drum that ensures high traction during haul-in. IGLAND 85H can be fitted with an hydraulic adjustable pulling point as option. This winch has electrohydraulic high pressure operation with self-contained hydraulics.

- Pulling capacity 85 kN (8,5 tons)
- Ideal for tractors 66 to 103 kW (90 – 140 hp)
- Automatic safety brake
- 3-point hitch as standard
- Weight 880 kg
- Logging plate width 2,06 meters
- Cableguard prevents derailment
- Radio control is optional
- Double clutch
- Adjustable height of pulling point
- Electrohydraulic high pressure operation with self-contained hydraulics is standard
- Maintains high pressure during winching
- High-capacity drum
- Excellent spooling characteristics
- Close to tractor permits heavy loads
- High line pull throughout haul
- Specially made topstay for extra ground pressure

Show more
Ask for delivery time

Max pulling capacity / empty drum: 85 kN (8,5 tons)
Max pulling capacity / full drum: 43,4 kN (4,3 tons)
Number of drums: 1
Wire rope, theoretical capacity: 100 m, 14 mm
Recommended wire rope length: 80 m, 12 mm
Pulling speed at 540 rpm: 0,48 – 0,82 m/s
Ratio: 1:12,3
Necessary power input: 51 kW (ISO 6687)
Braking power: Min 106 kN (10,6 tonn)
Controls: Electrohydraulic high pressure operation with self-contained hydraulics is standard
Clutch: Double clutch with replaceable friction plates
Brake: Automatic safety brake
Mounting: 3-point hitch with enforced topstay
PTO input, distance from ground: 60 cm
Height/ Width/ Depth: 230/ 206/ 80 cm
Weight (without wire rope): 880 kg
