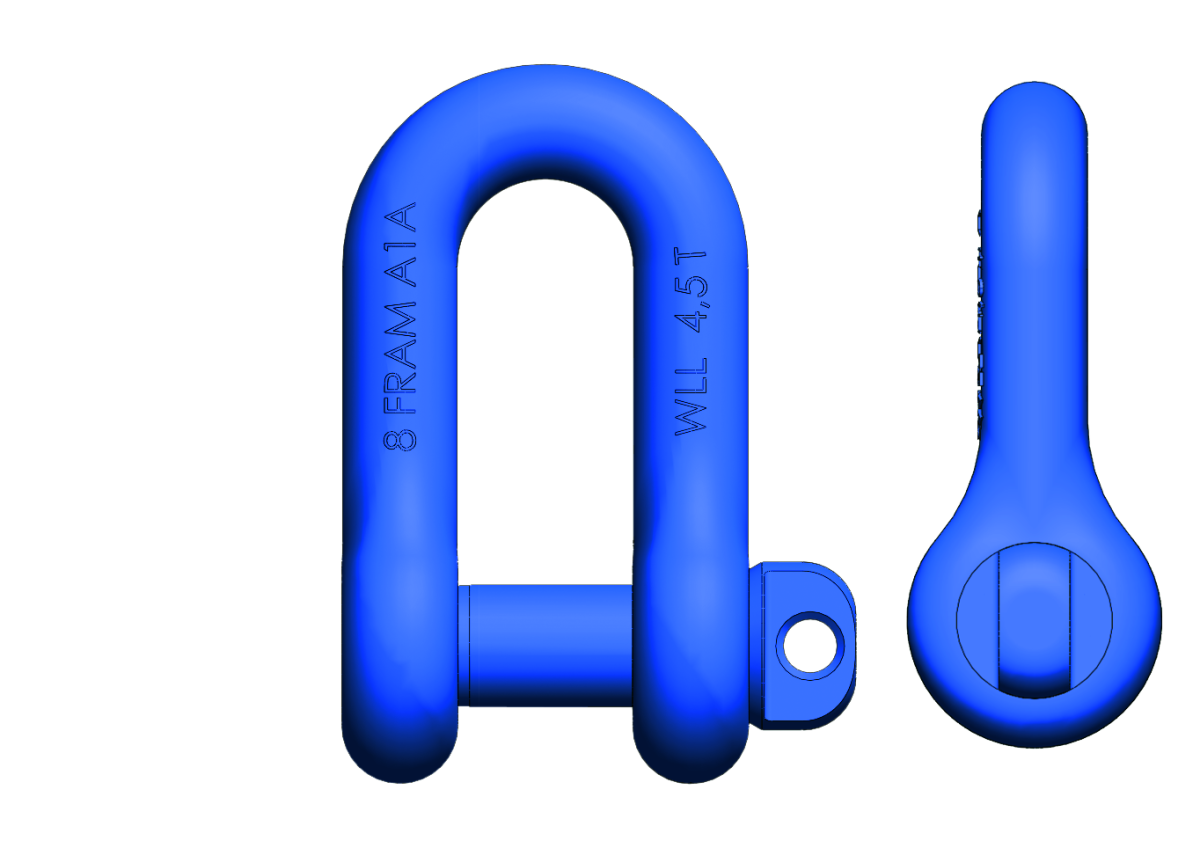

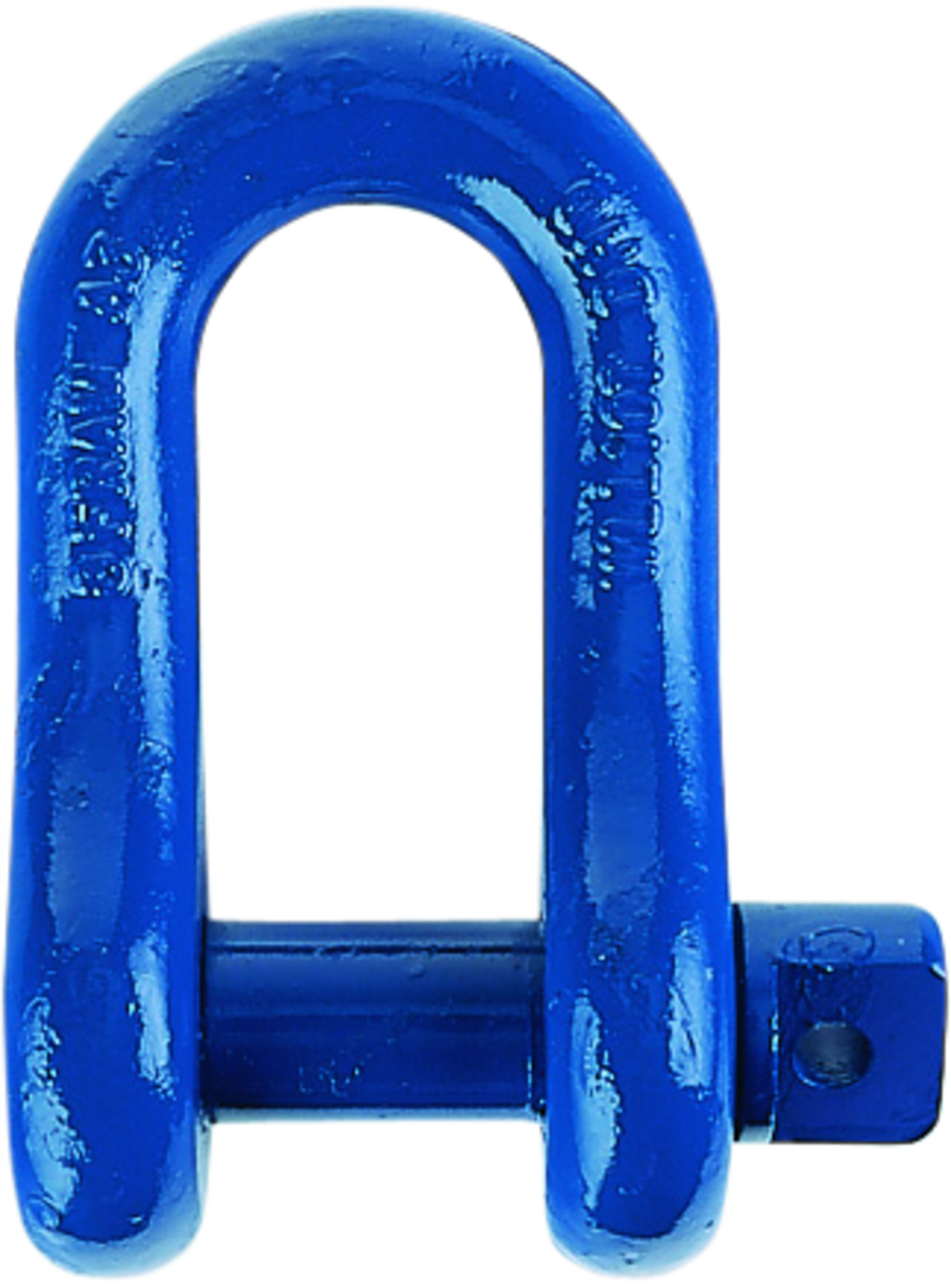

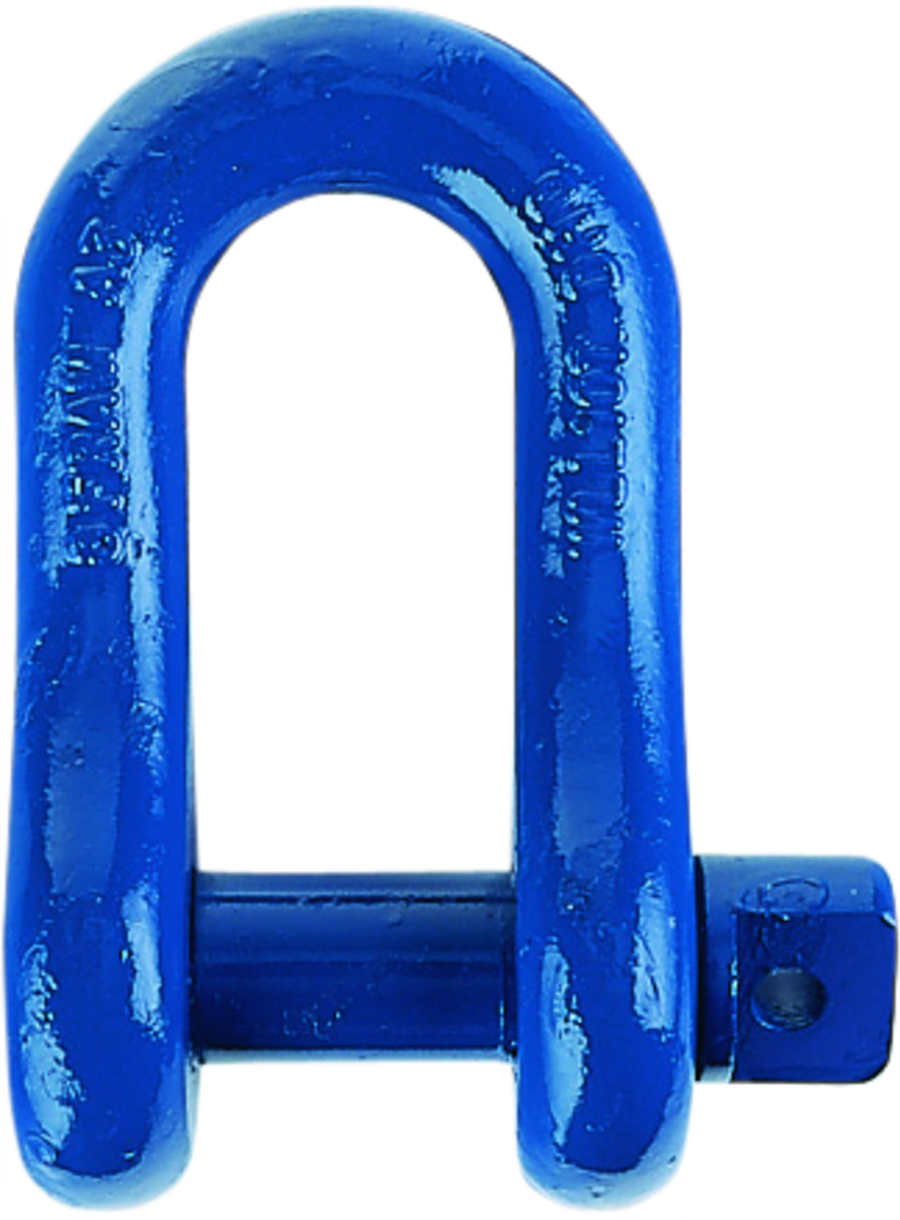

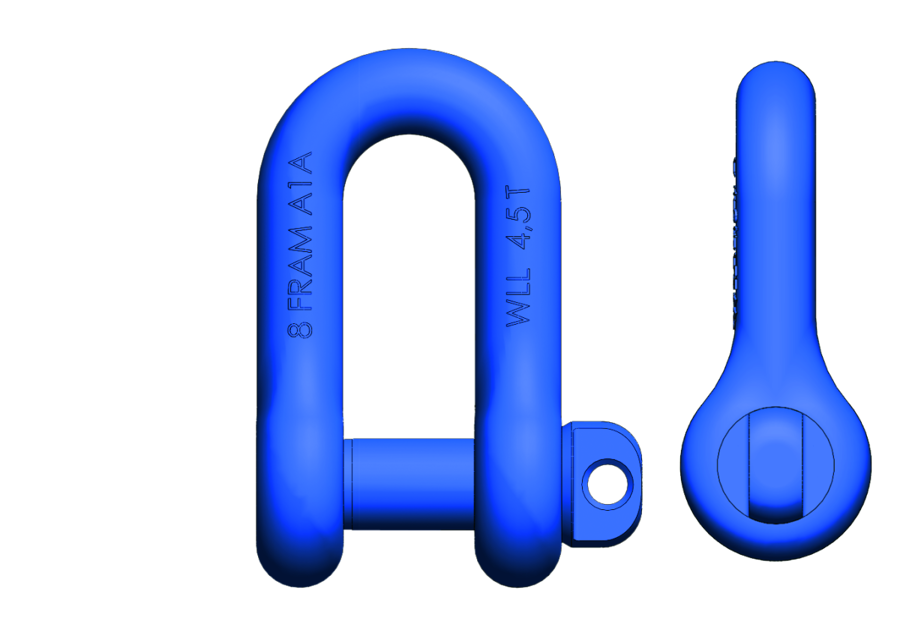

FRAM Shackles- short type A - with eye pin

Dim. code | WLL (ton):
Select...

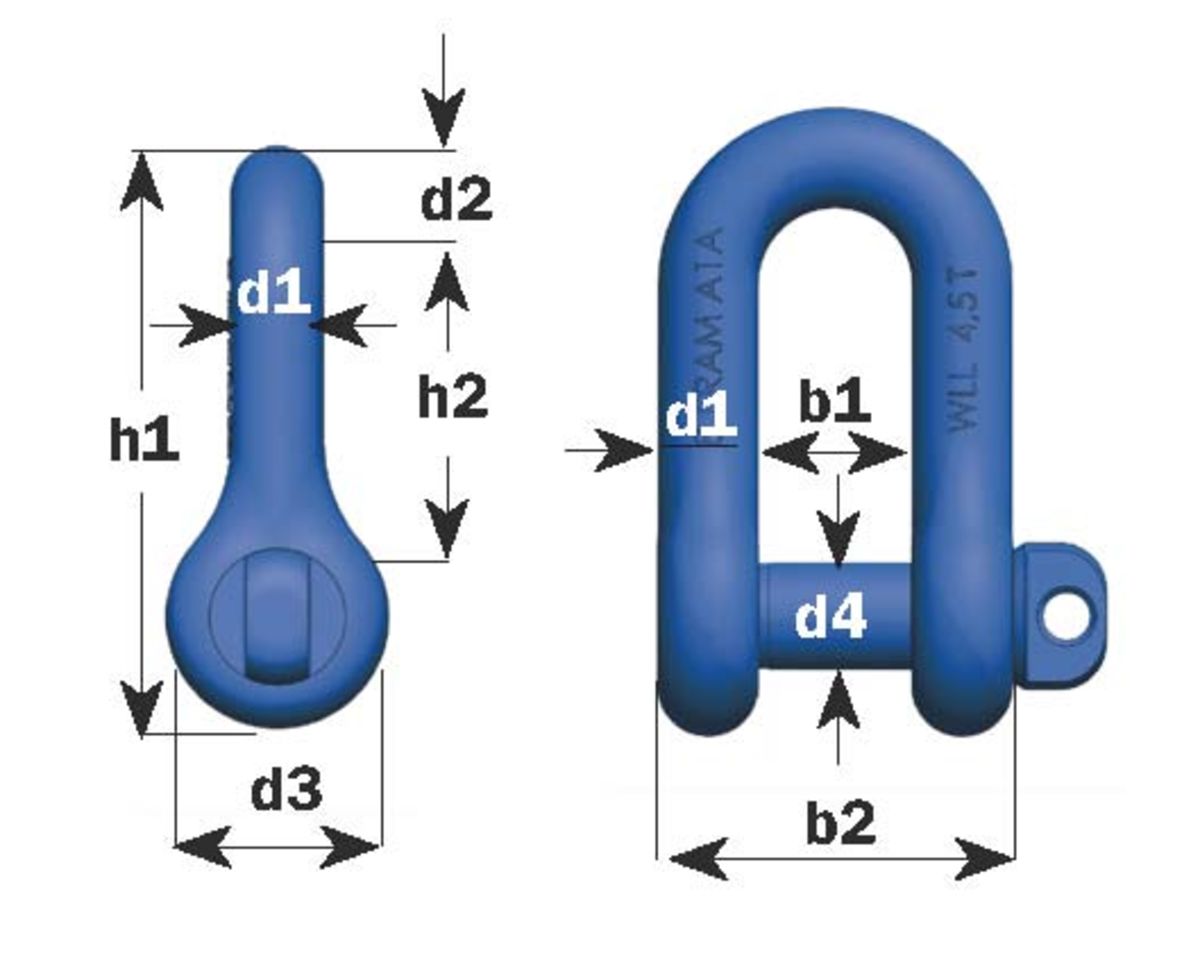

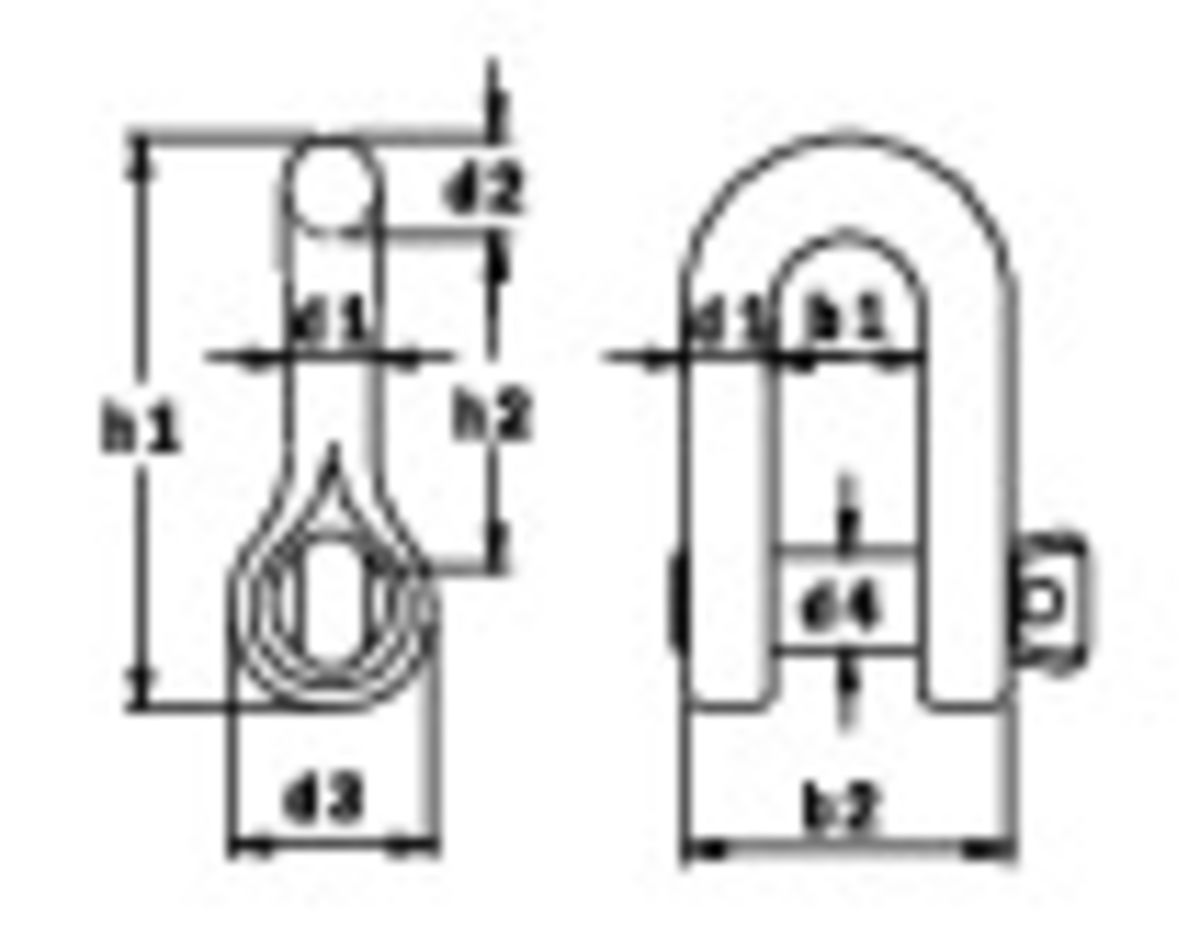

Item no. Dim.Code WLL Dim mm kg
5:1 ton b1 b2 d1 d2 d3 d4 h1 h2 N.W.
0206001  A.06.A 2 19 45 13 14 28 12 79 45 0.2
0206002  A.1.A 3.25 23 53 15 16 36 16 94 53 0.4
0206003  A.2.A 6 33.5 73 19.5 22 45 22 127 74 1
0206004  A.3.A 10 43 93 25 25 60 27 162 94 2.2
0206005  A.5.A 15 48 112 32 32 72 33 203 110 3.7
0206006  A.6.A 25 54 124 35 35 82 39 216 121 5.2
