Yoke Key Eye Point
  • Metric Thread
  • Rotates through 360° and adjustable in the direction of the load.
  • Manufactured and tested in accordance with EN 1677-1.
Show more
Find dealer
Ask for delivery time

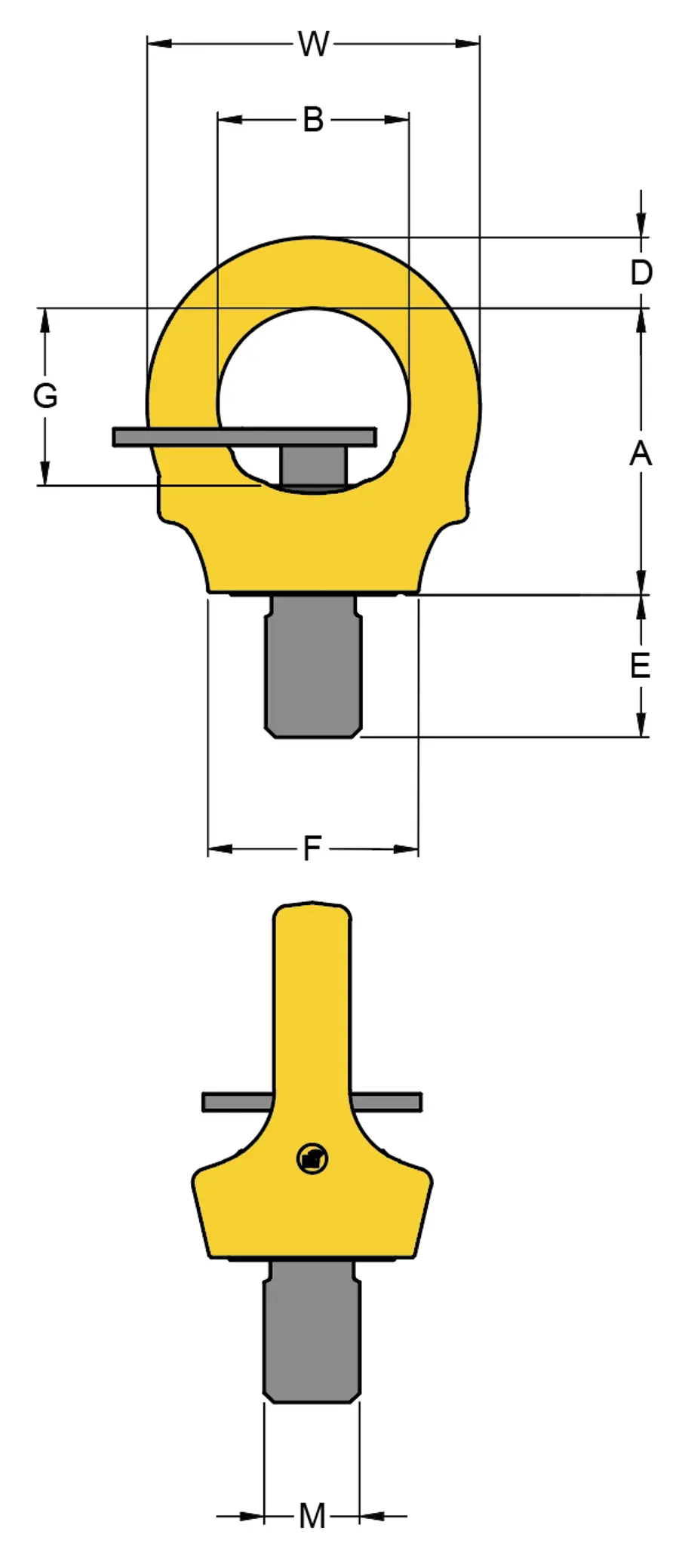

Item no. WLL Dim mm KG
x (z) Thread A B C D E F S W N.W.
0312120 0,3 (1) M8 36 25 8 9 12 25 6 44 0,1
0312121 0,4 (1) M10 36 25 8 9 15 25 6 44 0,1
0312122 0,75 (2) M12 45 30 10 11 18 33 8 52 0,2
0312123 1,5 (4) M16 52 35 14 13 24 35 10 61 0,3
0312124 2,3 (6) M20 60 40 16 15 30 44 12 70 0,6
0312125 3,2 (8) M24 72 48 19 18 36 52 14 84 1,0
0312126 4,5 (12) M30 90 60 24 22 45 60 17 105 1,8
0312127 7,0 (16) M36 109 72 29 27 54 76 22 126 3,2
0312128 9,0 (24) M42 123 82 34 32 63 88 24 147 5,0
0312129 12,0 (32) M48 144 94 38 37 72 104 27 168 7,6
